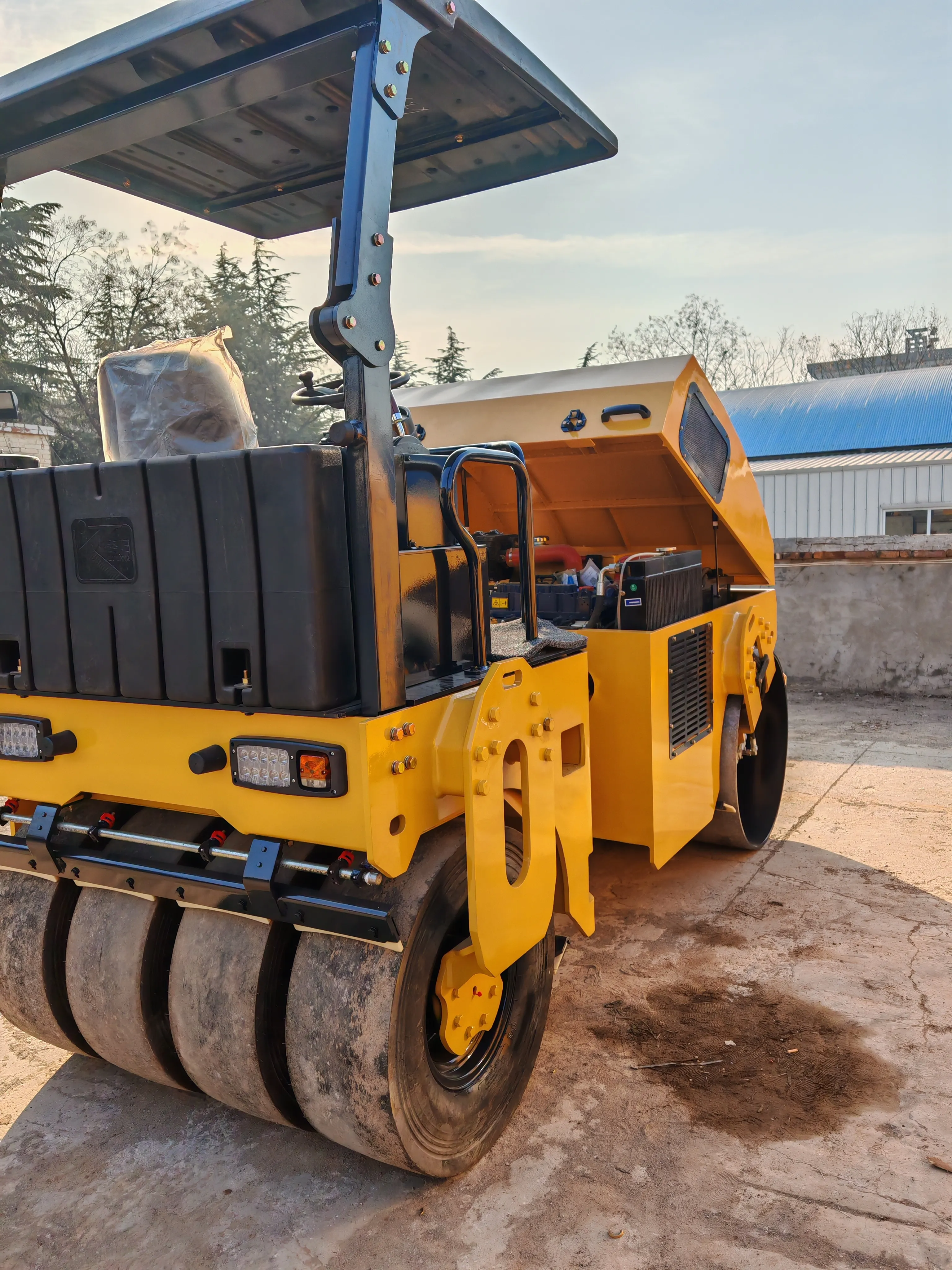

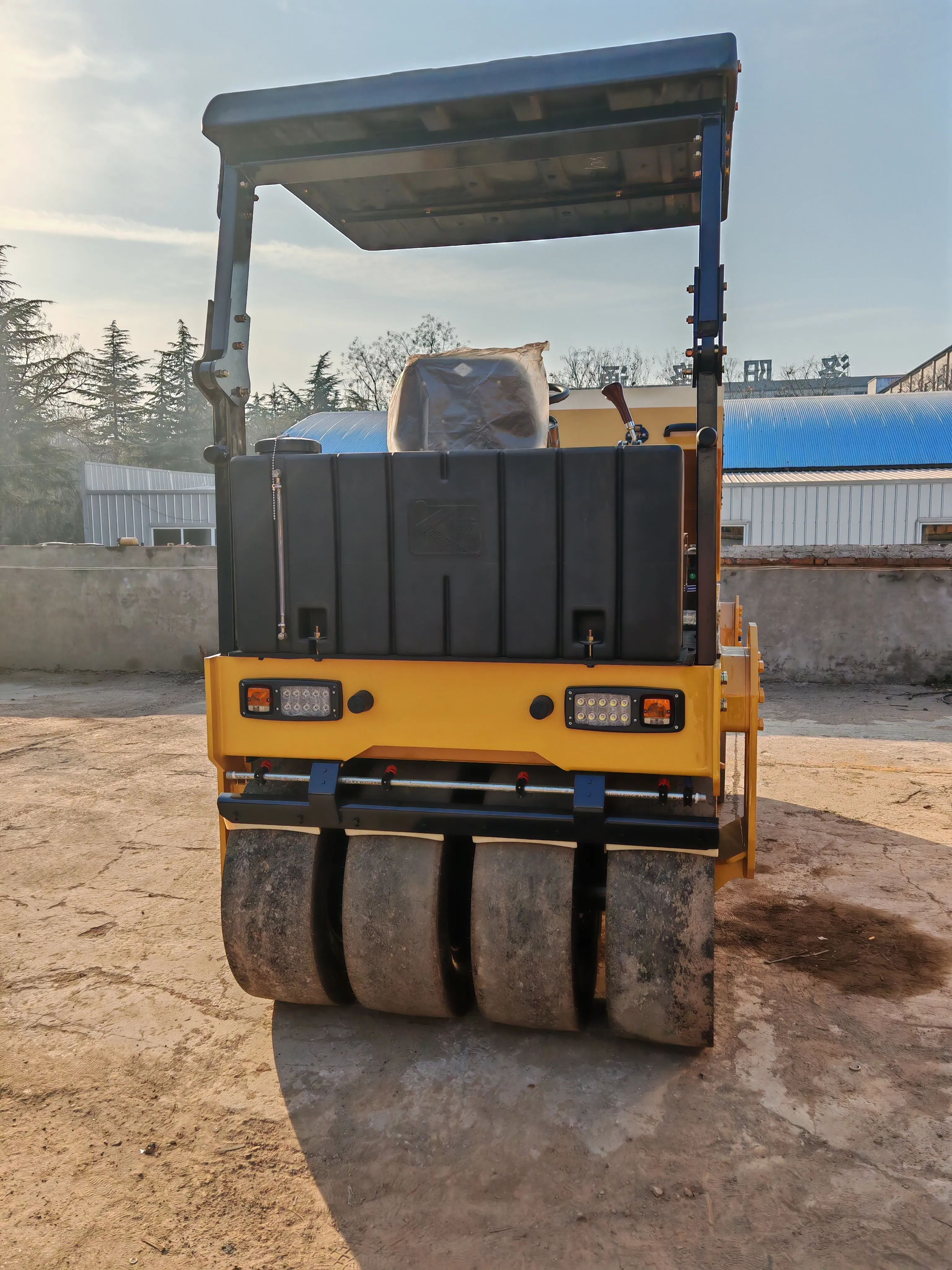

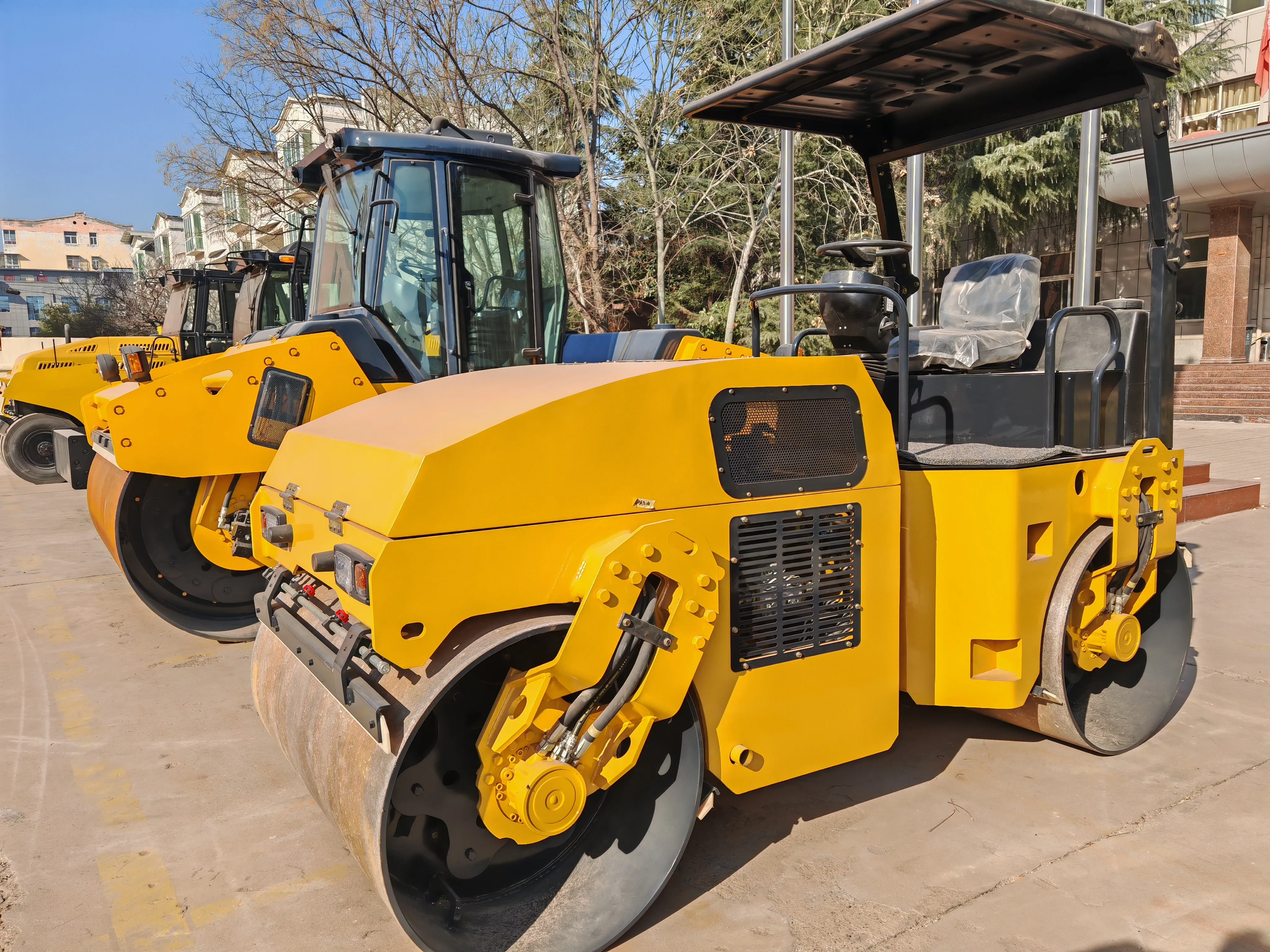

LTC206 Mechanical Drive Asphalt Compactor Road Roller Double Rollers Single Vibration Roller Construction Soil Compactor

Main technical featuresEquipped with National IV emission diesel engine, high power, low fuel consumption, energy saving and environmental protection.Front and rear wheels are hydraulically driven, using plunger pump and high torque motor, stepless speed change, strong climbing ability.Front and rear steel wheels vibrate, the wheel body has a unique lubrication structure, the vibration bearing is fully lubricated when the wheel body rotates and vibrates, greatly improving the life of the bear

Model: LTC206

Operating mass: 6000 kg

Online inquiry

Content details

001 40.jpg.png

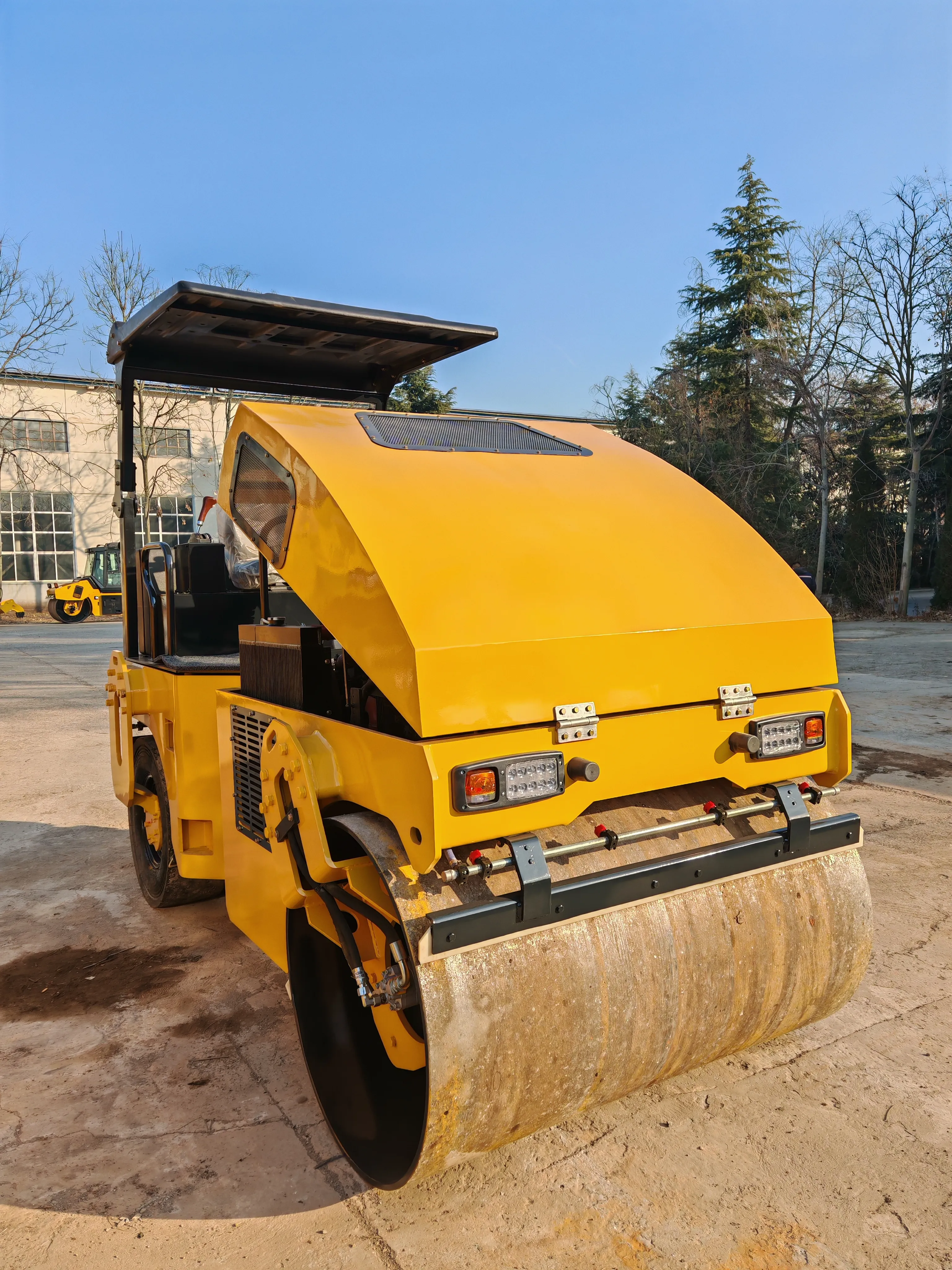

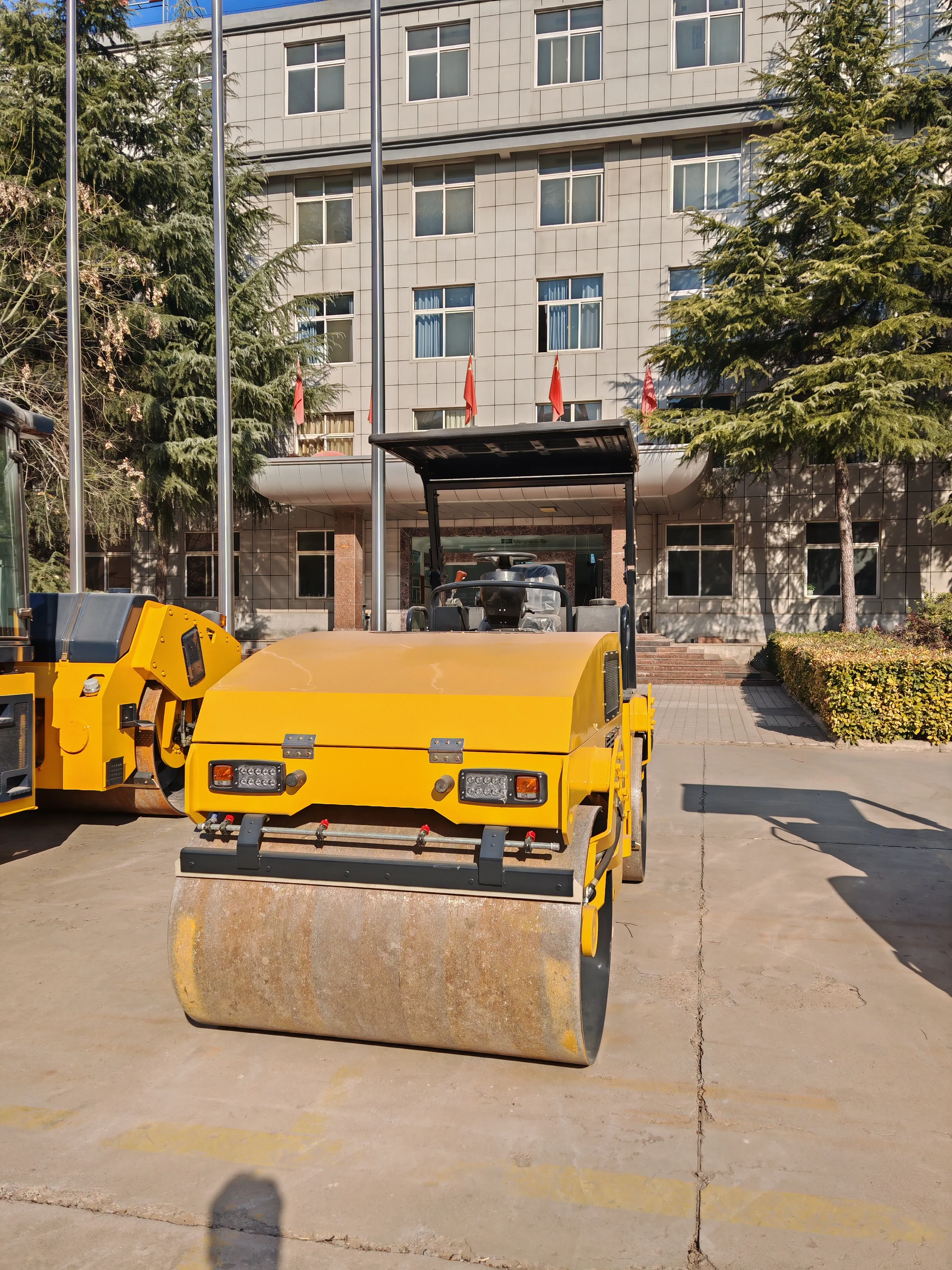

LTC206 double steel-wheeled vibratory roller, applicable for maintenance of municipal roads , as well as the compaction of the narrow road surfaces such as groove foundation, building construction, pipeline backfill and stadium.

Main Characteristic:
1, Hydraulic double wheels drive,Hydraulic double wheels vibration and steering, with reliable performance and optimum function/price ratio.
2,Both front and rear wheels have scraping and water spray unit.
3, Compact integral structure, small volume, capable of used for compaction on narrow site.

Model	LTC206
Operating mass	5700kg
Static linear load	Front 200/ Rear 180N/cm
Vibration amplitude	0.6mm
Centrifugal force	2x60Kn
Vibration frequency	50Hz
Max Travel speed	0-12Km/h
Ground clearance	300mm
Steering angle	30
Grade ability	30%
Overall dimension (LxWxH)	3380x1650x2750mm
Drum diameter	900mm
Drum width	2460mm
Track width	2010mm
Water tank capacity	200L
Ship	2units/20GP 4units/40HQ
